Lift 2 columns Hydraulic 5500 kg with lower bridge HP - 50C

Contact Us by WhatsApp Ask for your budget

Description:

Hydraulic two column lift with upper gantry synchronized by steel cables. Symmetrical arms of 3 stages of minimum height above 11 cm. Width of track 3.00 and distance between columns 3.30 m.

Here you can see all the 2 post lifts

CharacteristicsData sheetPhoto GalleryAccesoriosVideo 1Video 2Video 3Video 4Video 5

• Capacity: 5,500 Kg.
• Maximum lift height: 1,90 m.
• Minimum lift height 100 mm.
• Track width: 3,00 m.
• Automatic unlock.
• Upper porch.
• Synchronization system using steel cables and limit switches for safety.

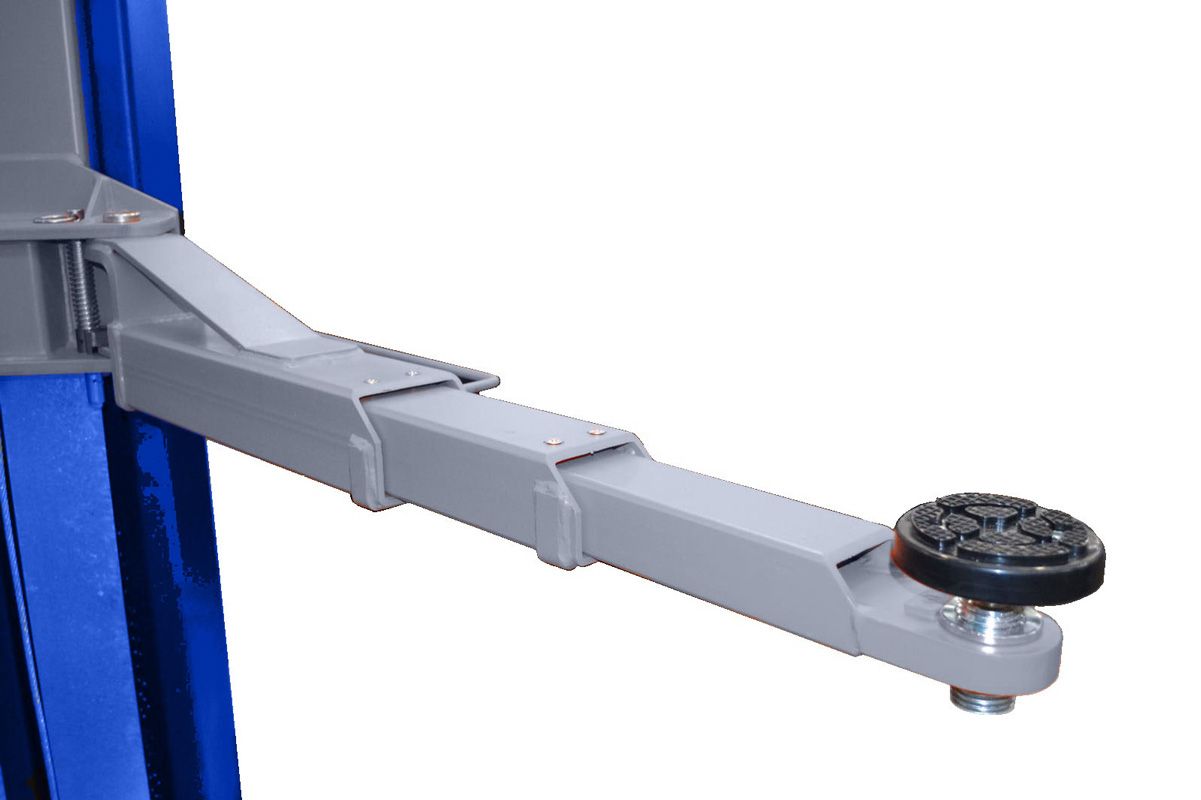

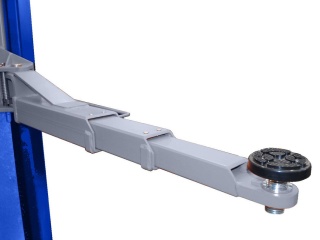

• Extensible load arms, with adjustable height supports and rubber cleat combination systems.
• Robust 6 mm sheet steel columns

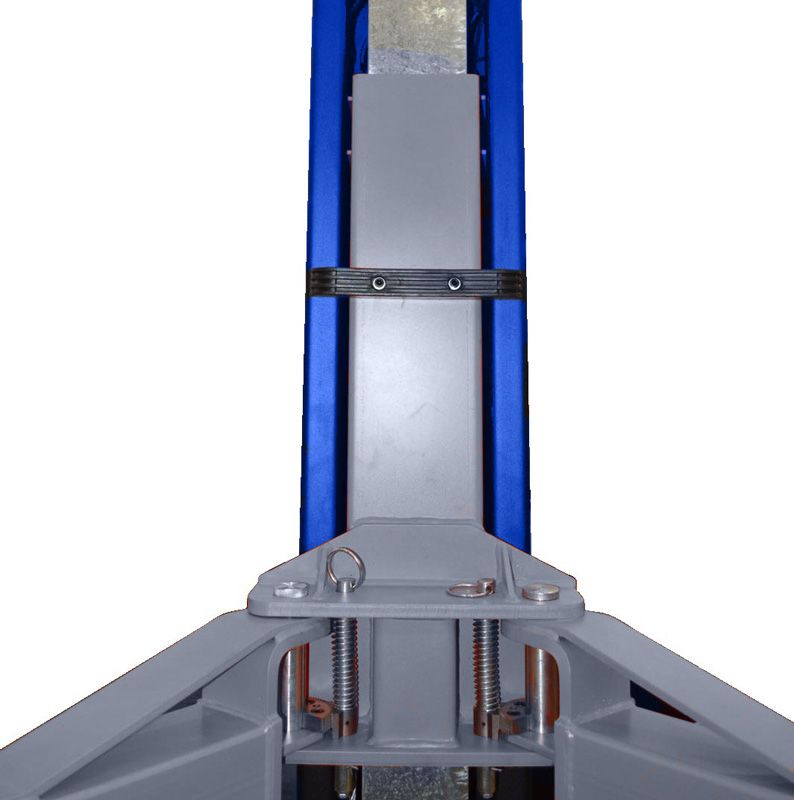

• Safety anchors that protect the hydraulic system.
